Intercom & Headsets

Post by Henry Wortman » Mon Dec 24, 2007 09:48

I am entering the world of two place planes and am coming from a single place plane where I used an Icom A21 with DC headset. My antenna was mounted at the front lift strut spar attachment. This worked very well and often communicated in excess of 75 miles.

What would be an acceptable intercom and headsets for use in the L16? I will probably use the ICOM A21 so where should the antenna be mounted?

User avatar
joea
Site Admin
Posts: 6053
Joined: Thu Nov 11, 2004 13:01
Location: Phoenix Arizona
Contact:

Post by joea » Mon Dec 24, 2007 11:31

Moved to the "Radios and Intercoms" from the "Photos" section for a bit more traffic.

Your L-16 is the same as a Champ and most people run an external antenna. I have seen them mounted on the gap fairings on the top of the wings, or on the bottom of the engine cowl.

One installation that I really liked that I have been thinking about is Scott Gifford in Prescott did a L-16 copy and put the antenna INSIDE the fuselage just behind the seat. The ground plane was a piece of wire screen and the antenna itself mounted to the screen. As everything is fabric or wood back there the reception and transmission was excellent and the plane just looked nice without any antenna's hanging out on the plane.

There are various options and you also might do a search for "antenna" on this forum.

Joe

Henry Wortman
Posts: 13
Joined: Thu Oct 25, 2007 21:23
Location: Quitman, GA
Contact:

Post by Henry Wortman » Mon Dec 24, 2007 22:12

I would like to know what intercoms are being used and their strengths and weaknesses. My plane will not have an electrical system so the intercom will have to be self powered or I might install a battery pack and possibly a solar panel. Also what headphones are being used?

User avatar
Nathan K. Hammond
Posts: 2404
Joined: Wed Nov 17, 2004 00:22
Location: Danville, KY (DVK)
Contact:

Post by Nathan K. Hammond » Mon Dec 24, 2007 23:48

Henry,
I use an old Sigtronic portable that use to have a cigarette plug. I clipped the plug wires and spliced in a 9v battery plug and it works fine. When I get back home on Wednesday, I'll snap some shots. A battery would last about 15-20hrs.

Here's what the modern day version looks like, and they're already battery opperated. A nice thing about the new ones is the Aux input plug: you can plug in an iPod and now you've got tunes!

nkh
7AC-5691
Super 85-12F @ DVK

pablo
Posts: 115
Joined: Thu Nov 18, 2004 21:55
Location: Oklahoma City
Contact:

Post by pablo » Tue Dec 25, 2007 14:04

I am very satisfied with the "Pilot Avionics- PILOT PA 200- 2 Place MiniCom" intercom that I bought from the King's School Catalog for about $90 several years ago (and still working on the original 9V battery). The Icom A6 works great with the rubber antenna (I very seldom use my external wing mounted antenna), as long as you use a PTT (about $18) .
Pablo

EDGEFLY
Posts: 397
Joined: Wed Jun 13, 2012 19:06
Location: NORTHCENTRAL PENNSYLVANIA
Contact:

Re: Intercom & Headsets

Post by EDGEFLY » Fri Aug 17, 2012 19:19

Henry,
Have you considered going wireless and doing away with all the cables for audio transmission in the cockpit ? There are several of the necessary components available in the marketplace and more in the pipeline. These would obviously be battery operated and lightweight as well. I intend to go this way for my Chief.

Dale

User avatar
rkittine
Posts: 882
Joined: Mon Sep 13, 2010 13:48
Contact:

Re: Intercom & Headsets

Post by rkittine » Sat Aug 18, 2012 11:53

Henry,

I am using a Soft Comm two place intercom. They are available Radio Specific so the connectors will hook directly to your ICOM A21 Radio. With 2 9V batteries, they run for a long, long time. I have a sealed acid battery under the seat which powers it for ever as it also has a 9-35 volt input for external power. I talked to softcom before I ordered it and asked them about adding jacks for PTT lines so I could wire something rather than using the button on the box. They provided it to me with two PTT jacks at no additional charge and even gave me the male plugs to use. I will see if I have a picture to post as I have it velcrowed on the side wall of the plane.

I use a regular VHF antenna on the wing root as someone else mentioned.

Bob
Robert P. Kittine, Jr.WA2YDV
West Nyack Aviation, L.L.C.
New York, New York 631-374-9652
rkittine@aol.com

User avatar
rkittine
Posts: 882
Joined: Mon Sep 13, 2010 13:48
Contact:

Re: Intercom & Headsets

Post by rkittine » Sat Aug 18, 2012 11:57

Here is the radio mounted on a Ram Belt Clip Mount on the Panel of my 7CCM
IFR PANEL - RS - 2.jpg
IFR PANEL - RS - 2.jpg (189.97 KiB) Viewed 2753 times
Robert P. Kittine, Jr.WA2YDV
West Nyack Aviation, L.L.C.
New York, New York 631-374-9652
rkittine@aol.com

User avatar
rkittine
Posts: 882
Joined: Mon Sep 13, 2010 13:48
Contact:

Re: Intercom & Headsets

Post by rkittine » Sat Aug 18, 2012 12:01

Here is the battery installation with quick disconnect straps so it is legally a temporary installation.
BATTERY INSTALLATION - RS - 2.jpg
BATTERY INSTALLATION - RS - 2.jpg (216.37 KiB) Viewed 2752 times
Robert P. Kittine, Jr.WA2YDV
West Nyack Aviation, L.L.C.
New York, New York 631-374-9652
rkittine@aol.com

User avatar
rkittine
Posts: 882
Joined: Mon Sep 13, 2010 13:48
Contact:

Re: Intercom & Headsets

Post by rkittine » Sat Aug 18, 2012 12:02

Softcomm Intercom held on with velcro to the side wall.
Robert P. Kittine, Jr.WA2YDV
West Nyack Aviation, L.L.C.
New York, New York 631-374-9652
rkittine@aol.com

MikeB
Posts: 3255
Joined: Wed Nov 17, 2004 17:07
Location: Western Wisconsin
Contact:

Re: Intercom & Headsets

Post by MikeB » Sat Aug 18, 2012 15:49

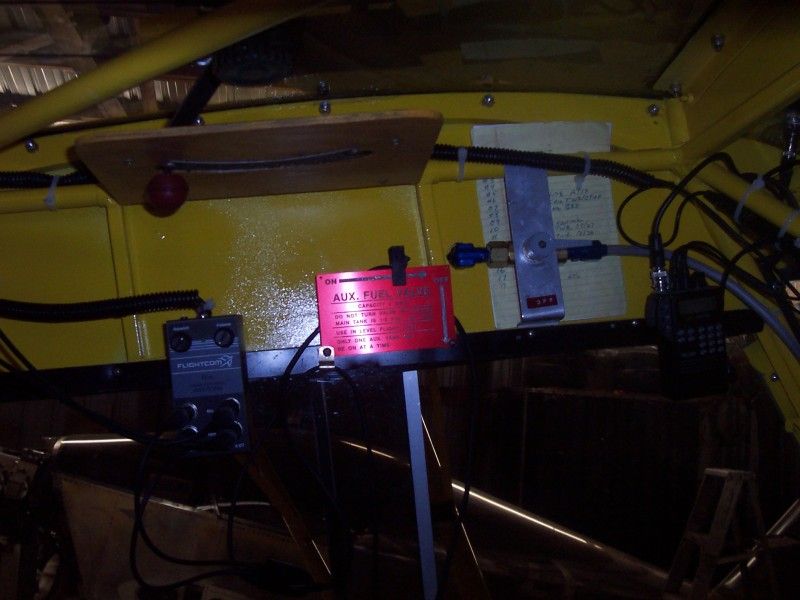

Sorry for the poor photo but here's the installation on my L16., realize this doesn't work for anything with a headliner. I have a Flightcom two person intercom (cheap but works good) and my JRC radio is attached to the upper window retainer (far right) with the belt clip. I like stuff out of the way (in this case ...up) but as mentioned elsewhere I hate all the wires. My radio is powered by the 25 amp starting battery rather than a bunch of AAA's.

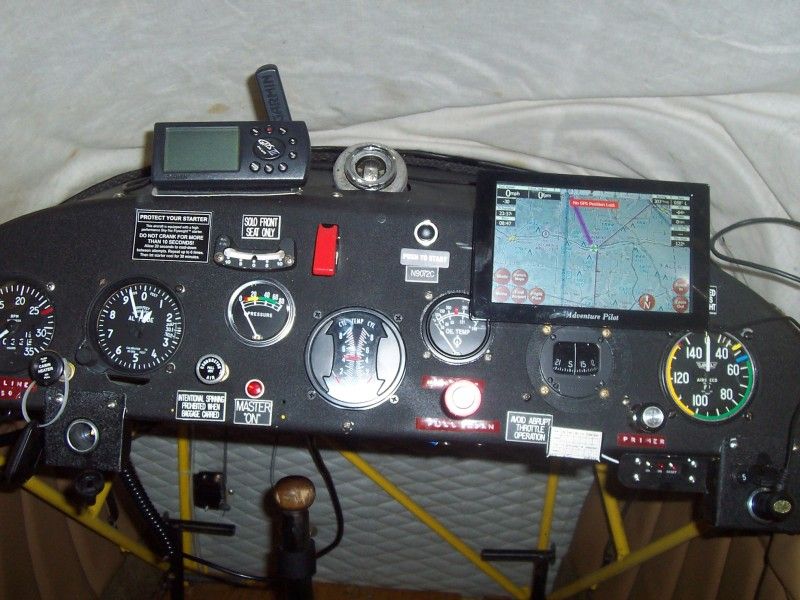

Here's the dash with my IFLY GPS setup. Finally figured out how to mount it without using the suction cup which I didn't trust as it fell down twice. I hook the unit on a screw in the dash and use a piece of velcro on the bottom to hold it straight. I was able to get approval on a 337 for the 12 volt power plugs when I installed my battery and Sky-Tec starting system.
The Garmin (Plus 3) unit on the top of the dash has served me well since about 1999 but I don't use it much anymore...although it takes a lot less room!


Mike
