Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by RRHaldeman »

I'm removing two triangular shaped 6 gallon aux tanks from one set of wings and installing them in another set. I have a PDF file of Aeronca Drawing 7-1001 which appears to be the correct drawing. The aux tanks fit just inside the drag wires, supported by a wood sheet; but my mechanic and I (a) cannot get enough information off the drawing to really understand the installation and (b) we probably need a cleaner drawing. Is there anyone familiar with the triangular Aeronca aux tank installation, or someone who has pictures, or someone who may have a cleaner drawing? I did take photos of the original installation but there are sufficient discrepancies for us to believe that the original installation was not exactly per the drawing.
Dick Haldeman, RRHaldeman AT aol DOT com
Cell (815) 222-9812
1946 7AC-2407 N83729
User avatar
joea
Site Admin
Posts: 6008
Joined: Thu Nov 11, 2004 13:01
Location: Phoenix Arizona
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by joea »

Dick,

What is the number on the drawing? Will see if I have one in our collection.

Joe
Paul Agaliotis
Posts: 2571
Joined: Wed Dec 08, 2004 18:49
Location: San Martin, California
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by Paul Agaliotis »

Dick,
I have a NOS L16 wing with a tank in it. I'll go take a look and let you know whats in it. It will be next week, I have a road trip to do this weekend.
Remember that engineers make the drawings and the mechanics make it work.
Paul
Mailing Adress : Paul Agaliotis 2060 E. San Martin, San Martin,Calif. 95046
User avatar
RRHaldeman
Posts: 241
Joined: Sat Nov 28, 2009 11:07
Location: Mt Juliet, TN
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by RRHaldeman »

Joe, 7-1001.
Dick Haldeman, RRHaldeman AT aol DOT com
Cell (815) 222-9812
1946 7AC-2407 N83729
User avatar
joea
Site Admin
Posts: 6008
Joined: Thu Nov 11, 2004 13:01
Location: Phoenix Arizona
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by joea »

Sent you two copies of the blueprint that I have.

One of them might get bounced by AOL as its over 10 megs.

Joe
User avatar
RRHaldeman
Posts: 241
Joined: Sat Nov 28, 2009 11:07
Location: Mt Juliet, TN
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by RRHaldeman »

Got them both and one of them is much clearer than the one I had. Sure appreciate your help. For others who read this, anyone with experience on how to install the triangular 6 gallon wing aux tanks using 7-1001, I'd like a chance to discuss it with you.
Dick Haldeman, RRHaldeman AT aol DOT com
Cell (815) 222-9812
1946 7AC-2407 N83729
User avatar
Nathan K. Hammond
Posts: 2371
Joined: Wed Nov 17, 2004 00:22
Location: Danville, KY (DVK)
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by Nathan K. Hammond »

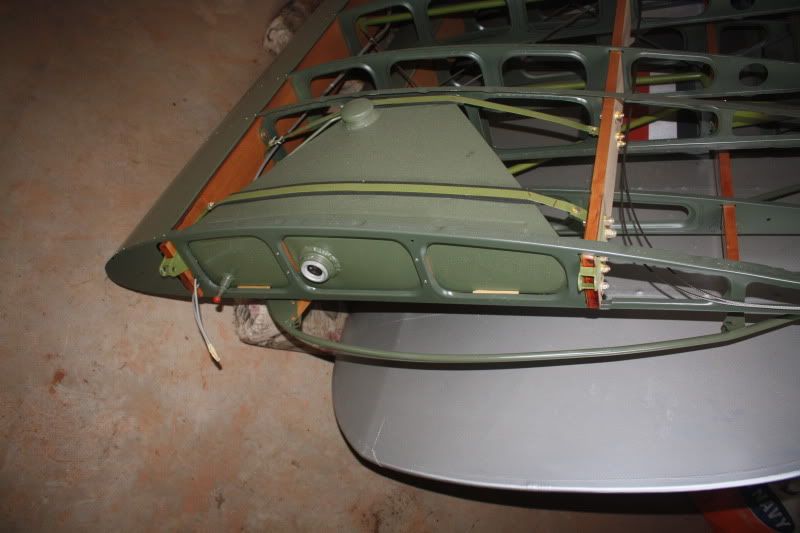

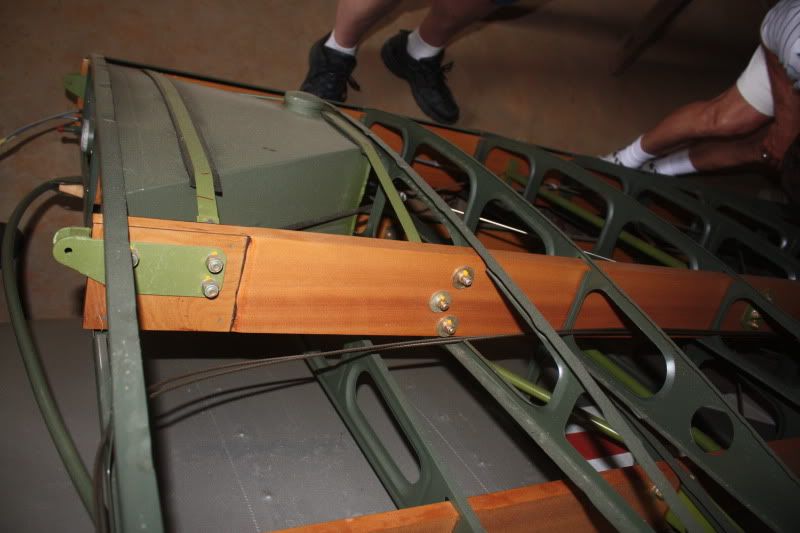

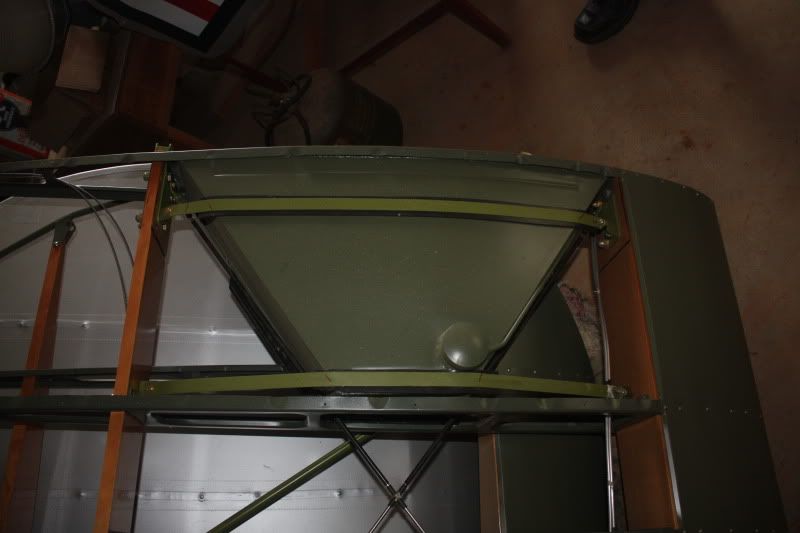

I know it's been over a month from the original question; but here are a couple pics from Lloyds L-16.


nkh
7AC-5691
Super 85-12F @ DVK
jepropst
Posts: 160
Joined: Fri Jun 20, 2008 20:44
Location: Elizabeth, West Virginia
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by jepropst »

I installed the 13 gallon tanks on my plane and the installation is quite similar. One word of caution that I got from Bill Pancake. Be sure to fill the tank completely full of gasoline before you begin covering the wings and let them set for a few hours. It's much better to find any leaks before the covering goes on.
John Propst
313 Hickory Grove Ln
Elizabeth, WV 26143
cell 304 588 3690
j.e.propst@ieee.org
N3129E 2WV3
User avatar
RRHaldeman
Posts: 241
Joined: Sat Nov 28, 2009 11:07
Location: Mt Juliet, TN
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by RRHaldeman »

Thanks for the photos, Nathan. And thanks for the advice, John.
Dick Haldeman, RRHaldeman AT aol DOT com
Cell (815) 222-9812
1946 7AC-2407 N83729
User avatar
joea
Site Admin
Posts: 6008
Joined: Thu Nov 11, 2004 13:01
Location: Phoenix Arizona
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by joea »

Excellent photos!
Jerry Jackson
Posts: 104
Joined: Tue Jun 24, 2008 07:59
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by Jerry Jackson »

Joe

I would like to get a copy of 7-1001 also. Thanks.

Jerry Jackson
7ECA & TC65
8T8
Jerry Jackson
San Antonio
7ECA 65TC
8T8
User avatar
joea
Site Admin
Posts: 6008
Joined: Thu Nov 11, 2004 13:01
Location: Phoenix Arizona
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by joea »

Jerry,

Trying to send it to you now. Its 11 megs in size so hope it goes through to your server.

Joe
User avatar
RRHaldeman
Posts: 241
Joined: Sat Nov 28, 2009 11:07
Location: Mt Juliet, TN
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by RRHaldeman »

When Joe sent the drawing to me, I downloaded it and found a local place to print it actual size. Cost $5.75. Once it was blown to actual size, it really helped. Thanks, Joe.
Dick Haldeman, RRHaldeman AT aol DOT com
Cell (815) 222-9812
1946 7AC-2407 N83729
User avatar
joea
Site Admin
Posts: 6008
Joined: Thu Nov 11, 2004 13:01
Location: Phoenix Arizona
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by joea »

Glad to help! Thats why the NAA is here, to help!
pmanton
Posts: 121
Joined: Sat Oct 29, 2011 10:42
Location: Indian Hills Airpark Salome, AZ
Contact:

Re: Champ Aux Tanks installed i/a/w Aeronca Drawing 7-1001

Post by pmanton »

looking at what I can make of 7-1001 it looks like they took a butt rib center section and added it for reinforcement, while cutting out an entire rib center section to make room for the tank. On the other hand it looks like the L-16 has a butt rib added in its entirety.
Thanks for the pictures.

I'll be installing one of these and need all the help I can get. :)
